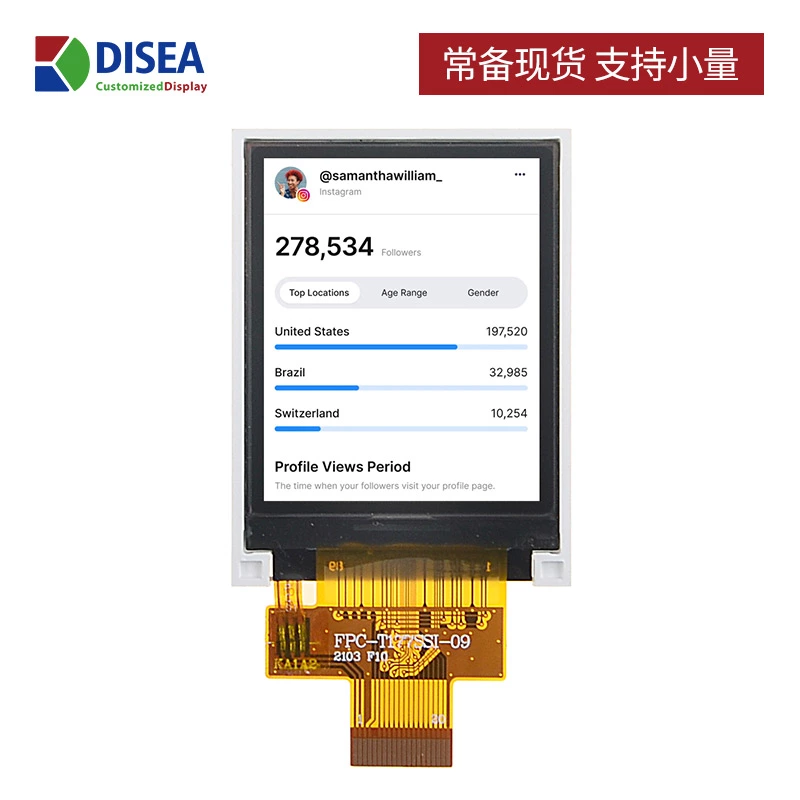

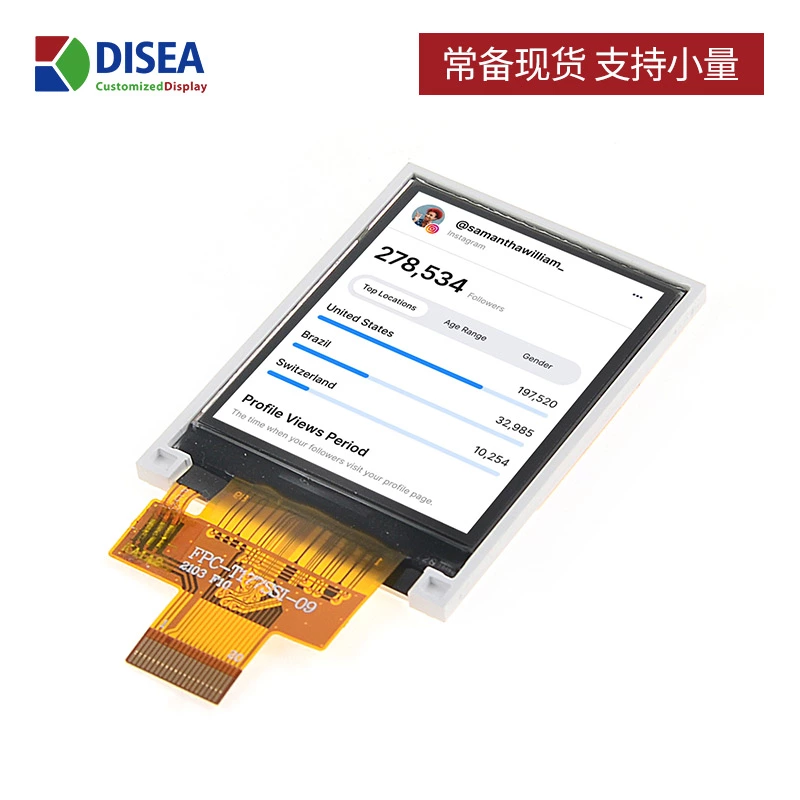

1.77寸160*128分辨率LCD液晶屏-ZW-T177YTH-01
ZW-T177YTH-01
型号为ZW-T177SSI-09的是一款1.77寸LCD液晶模组，分辨率128*160，亮度220cd/m2，支持MCU 8BIT通讯接口，可用于标签打印机
| Feature | Specification | Unit |
|---|---|---|
| Brand | Disea | - |
| Size | 1.77 | inch |
| Resolution | 128*160 | dots |
| Pixel pitch | 0.219(H)*0.219(V) | mm |
| Display Mode | TN/NW | - |
| Viewing Direction | 6 | o'clock |
| Gray Scale Inversion Direction | 12 | o'clock |
| Luminance | 220 | cd/m2 |

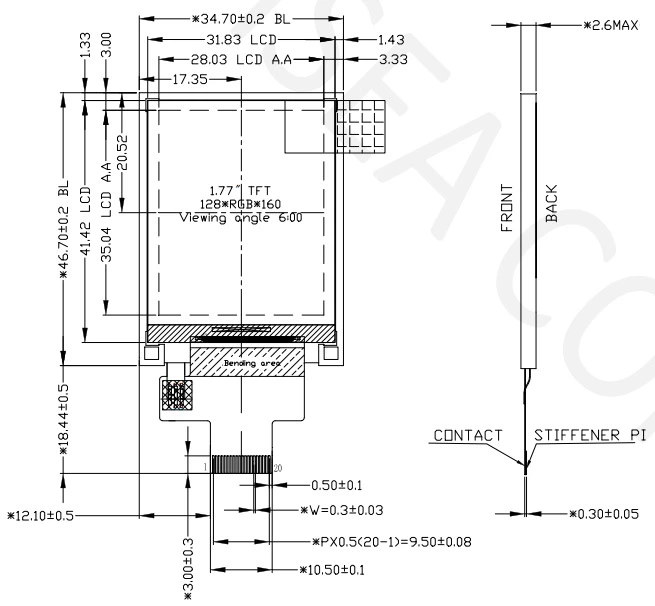

| LCM (W * H * D) | 34.70*46.70*2.60 | mm |
| Active Area (W * H ) | 28.03*35.04 | mm |
| With /Without TP | Without TP | - |
| LED Numbers | 2P-LED | pcs |
| Operation temperature | -20~+70 | ℃ |
| Storage temperature | -30~+80 | ℃ |
| Interface | MCU-8bit/20PIN | - |
| LCM Power Supply | 2.8 | V |
| LED Power Supply | 3 | V |
| Color Depth | 262K | - |
| LCM Driver IC | ILI9163V | - |
| CTP Dricer IC | - | - |
库存和定制
请咨询我们的产品库存。在大多数情况下，客户需要定制自己的产品。我们经验丰富的项目经理可以帮助您评估项目，推荐最合适的产品，或提出最合理的定制建议。评估是免费的，我们很乐意帮助您，即使您最终没有选择我们。
